“Piston pulley” is not a standard enough product name to support a safe purchase on its own. Before you compare Pune suppliers, define the pulley’s belt profile, dimensions, material, load, and finish so you receive a compatible, inspectable part rather than an unrelated engine or pump component.
Key takeaways
- Confirm whether you need a reciprocating-mechanism pulley or an engine piston part.
- Give suppliers belt size, bore, keyway, speed, load and material requirements.
- Compare piston pulley prices using identical material, machining, quantity and inspection terms.
- Request dimensional, balance, surface-finish and material checks before accepting the pulley.
Define the Part Before You Search for a Pune Supplier
A “piston pulley” is not a sufficiently precise product name. Before you buy piston pulley in Pune, establish whether you mean a pulley used in a reciprocating or piston-driven mechanism, a pulley with a piston-related assembly, or an engine piston mistakenly called a pulley.
Send a drawing or specification to each piston pulley supplier in Pune. Include:
1. State the pulley’s function, belt or rope profile, number of grooves, outside diameter, pitch diameter, bore diameter, keyway width and depth, hub length, and mounting-hole pattern.
2. Identify the supply condition: a raw cast blank, a CNC-machined pulley, or an assembled part containing a bearing, fasteners, or an insert.

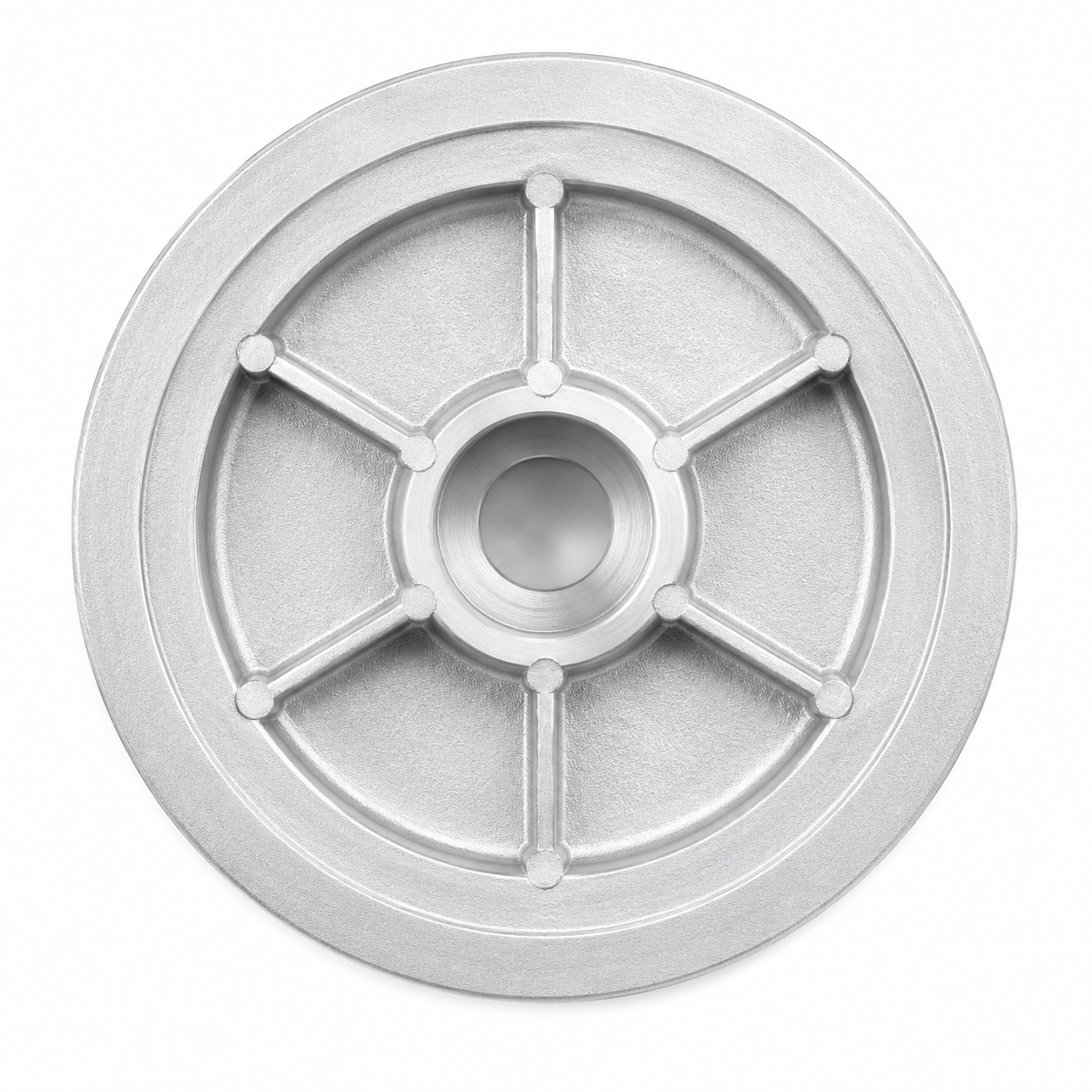

3. Name the material standard and temper, not just “aluminium.” An Al-Si casting alloy supports castability and corrosion resistance; a heat-treated alloy may be needed where a heavily loaded hub, flange, or keyway carries mechanical load.
4. Define the machining datums and finished dimensions. A piston pulley casting can be supplied oversize for machining, but the phrase does not prove interchangeability. Similar outside diameters and bores cannot substitute for matching groove geometry, belt engagement, or mounting details.
A clear drawing prevents a supplier from quoting an engine piston, an incompatible belt pulley, or a casting that still needs unpriced machining.
Check the Belt, Fit and Operating Load Before Ordering
Confirm the belt before you order: identify a V-belt, timing belt, flat belt, round belt, or another profile. Outside diameter alone does not prove fitment.
| Belt type | Confirm before ordering |
|---|---|
| V-belt | Belt section, groove angle, depth, spacing and pitch diameter against ISO 4183 or the specified belt standard |
| Timing belt | Tooth form, pitch, tooth count, flange arrangement and pitch diameter, calculated as pitch × tooth count ÷ π |
| Flat or round belt | Belt width or diameter, contact surface, tracking method and required pulley crown or groove |
Give the supplier these fit dimensions:
- Bore tolerance, shaft fit, keyway width and depth, hub length, axial clearance and mounting-hole pattern
- Radial runout and axial runout, each measured from the finished bore or pilot datum
- Balance grade or maximum permissible imbalance at the operating speed
The operating specification must include belt tension, transmitted torque, rotational speed, shock loading, temperature, corrosion exposure and duty cycle. Aluminium can make an aluminium piston pulley lighter, but high speed, an overhung hub, a worn bore, keyway stress, bearing load or a hot environment can change the material decision.
Engineering review may justify steel, cast iron, a steel insert or a hard-anodized wear surface. Send the drawing, belt designation and service conditions rather than asking for a generic pulley.
Where to Buy a Piston Pulley in Pune
To buy a piston pulley in Pune, choose the supply route from the part definition. Contact a casting and CNC-machining manufacturer for a drawing-based custom aluminium piston pulley; ask industrial distributors and bearing-and-power-transmission dealers for standard V-belt or timing-belt pulleys. Check automotive-parts sellers only with a confirmed vehicle or equipment reference.
Use online industrial marketplaces for leads, then verify capability directly.
Ask every piston pulley supplier in Pune for:
- Drawing revision, alloy designation and temper, proposed casting process, and net and gross casting weight.
- CNC-machining capability, minimum order quantity, tooling ownership, sample or first-article plan, inspection report, and delivery lead time.
- Confirmation that one controlled setup can machine the bore, datum faces, keyway, belt-contact surfaces, and bearing seat.
- Separate identification of the supplied condition: as-cast blank, machined pulley, or assembled part.
A Pune manufacturer such as SPM Castings becomes relevant when you need an aluminium casting followed by CNC machining rather than an off-the-shelf pulley. Send the application drawing and request confirmation of the process, machining datums, tolerances, and inspection scope; asking for a generic catalogue item leaves fit and runout unresolved.
If the part is a standard belt pulley, compare groove profile, bore, keyway, and belt standard before ordering. A catalogue diameter alone does not prove interchangeability.
Compare Piston Pulley Price in Pune on the Same Basis
A piston pulley price in Pune cannot be inferred from outside diameter or a single unit rate. A 200 mm pulley can carry different alloy, casting-process, machining, balancing, and batch costs. Compare quotes only after stating whether they cover an as-cast blank, fully machined pulley, or assembled unit with a bearing, hub, fasteners, or insert.
| Option | Tooling effect | Compare this way |
|---|---|---|
| Prototype | Die, pattern, or fixture cost dominates | Show non-recurring cost separately |
| Small batch | Setup and scrap spread across fewer pieces | Use batch quantity and effective piece cost |
| Repeat production | Tooling and setup spread across more pieces | Confirm revised unit rate and reorder terms |
Request separate quotation lines for:
- One-time die, pattern, or fixture cost
- Raw piston pulley casting
- CNC machining
- Keyway and bore work
- Balancing
- Heat treatment
- Anodising or other surface treatment
- Inspection and first-article approval
- Packaging
- Freight
- GST
Ask the supplier to state the batch quantity, net and gross casting weight, scrap or rework assumption, payment terms, and delivery lead time. A low price can exclude machining, inspection, tooling ownership transfer, or freight.
Also request the price validity period and a revision trigger for any alloy, drawing revision, quantity, or material-cost change. This format makes the piston pulley casting cost comparable across prototype, small-batch, and repeat orders instead of hiding setup charges inside one misleading unit rate.
Specify Acceptance Checks for the Casting and Finished Pulley
1. Freeze the drawing before accepting a piston pulley casting. Separate every as-cast dimension from every machined dimension, show machining allowances, and apply ISO 8062-3 where applicable. Identify the finished bore or pilot as the runout datum; define radial runout and axial runout against that datum. An outside-diameter check alone can hide an eccentric pulley.
2. Make the piston pulley supplier in Pune submit recorded results for bore size, keyway width and depth, hub length, groove profile, balance, surface finish, and mounting-hole location. For an aluminium piston pulley, state the measurement method, instrument accuracy, and acceptance limit instead of accepting an undefined “inspection report.”
3. Ask whether the route is sand casting, permanent-mould casting, or pressure die casting. The choice changes tooling investment, achievable wall thickness, surface finish, porosity risk, and economical batch size.
Do not approve a route from price alone: a pressure die may suit repeat volume, while sand or permanent mould may suit development or smaller batches.
4. For a speed- or safety-critical pulley, write the required examination into the purchase order: visual inspection against drawing defect limits, dye penetrant to ASTM E1417/E1417M, or radiography to an agreed standard such as ASTM E505.
Pay special attention to hub porosity and inclusions; machining can expose defects at the bore or keyway and weaken retention.
5. Approve one first article before repeat production. File the drawing revision, alloy certificate, inspection report, packaging method, and traceable batch number with the approval record.
Frequently asked questions
What should you define before searching for a piston pulley supplier in Pune?
Confirm the mechanism, belt profile, pulley diameter, bore, keyway, material and whether you need a casting or finished machined part.
Which operating details should you check before ordering a piston pulley?
Provide belt type and width, centre distance, operating speed, transmitted load, duty cycle, shaft size, alignment and environmental conditions.
How can you compare piston pulley price in Pune fairly?
Compare quotations with the same aluminium or other material grade, casting method, machining scope, quantity, tooling, inspection documents, packaging and delivery terms.
What acceptance checks should you specify for a piston pulley casting?
Check material identity, critical dimensions, bore and keyway fit, runout, balance, surface defects, porosity and the drawing revision against the inspection report.
